DC POWER SUPPLY

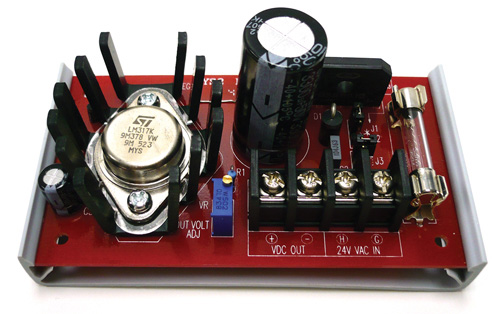

PW1.5
| Features and Benefits: | ||
| The Model PW 1.5 is a regulated 1.5 A power supply that accepts 24 VDC/VAC. Field voltage adjustments may be made using only a screwdriver. The power supply is provided with a mounting track for easy installation. ◊ Low Cost ◊ Regulated DC output ◊ Snap-track mounted ◊ Screw terminals with pressure plates |
||
Specifications: |
||
|---|---|---|
| Voltage: | Input : | 24 VAC, 50/60 Hz |
| Output: | 24 VDC (full wave rectified and regulated) adjustable 1.5 V - 27 VDC | |
| Output Current: | 1.5 amps (with 75 VA transformer) | |
| Temperature Stability: | 1% | |
| Over-current Protection: | 3 amp fuse | |
| Environment: | Operating Temperature: | 0 to 55°C (32 to 130°F) |
| Max. Humidity: | 95% RH, noncondensing | |
| Weight: | 0.4 lb. | |
| Mounting: | snap-track included | |
| Ordering Information: | |
| PART NUMBER | INFO |
| PW1.5 |
Regulated 1.5 amp power supply that accepts 24 VDC/VAC and provides an adjustable 1.5 to 29VDC output. |
