STURDY DESIGN REPLACES
OLD COPPER
"ONE SIZE ONLY" CLIPS
| Features and Benefits: | ||

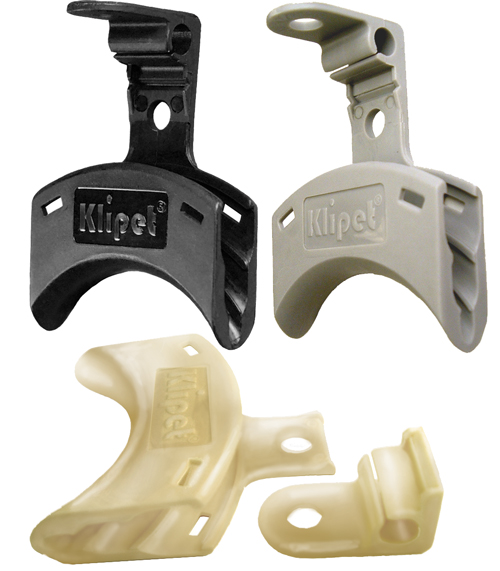

| ◊ Unit can hold three different sizes of capillary tubing ⅛”, ¼” and ⅜” ◊ Slots for tie anchors ◊ Inside tapered ridges allow tubing to be snapped in place ◊ Mounting in either horizontal or vertical planes ◊ Corner slot accepts 1/4" sensors ◊ Clips can be separated into two parts • Use one as a capillary mounting clip • The other part can be used as a sensor mounting bracket ◊ Plenum rated, class 94V-2 nylon ◊ Available in NATURAL, BLACK & GRAY |
||
Specifications: |
||
|---|---|---|

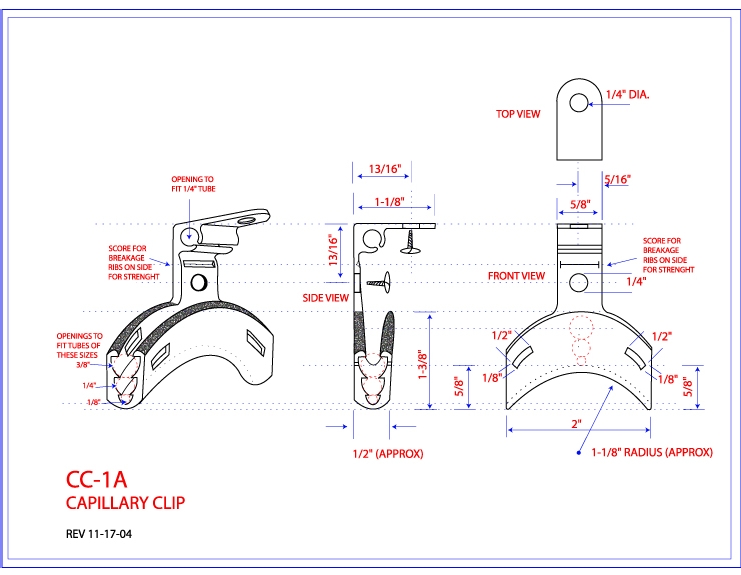

| Dimensions: | Overall: | 2"W x 1/2"D |
| Capillary Tube Openings: | 1/8", 1/4" & 3/8" | |
| Sensor / Tube Opening: | 1/4" | |
| Ordering Information: | |
| PART NUMBER | INFO |
| CC1-BK |
Capillary Clip, Black |
| CC1-G |
Capillary Clip, Grey |
| CC1-N |
Capillary Clip, Natural Colored |
