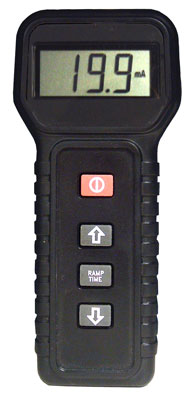

Compact Current & Voltage Calibrator


With LCD Numeric Display



Features and Benefits:
The Model CVC is a portable calibrator designed to meet the requirements of field calibration, testing, and troubleshooting of transducers, transmitters, actuators, and other process and control devices.

The Model CVC features a large, 0.59” (15 mm), LCD numerical display, with blue backlighting for use in dimly lit areas. Powered by a readily available standard 9V battery, it also comes with a 120V AC plug-in power supply for bench-top use.

◊ 0.0 to 20.0 mA DC output in 1.0 mA steps
◊ 0.0 to 10.0 V DC output in 1.0 V steps
◊ Three output modes automatically selected by plug location
◊ Simulate using external loop supply (30 V DC Maximum)
◊ Source using internal 9V battery
◊ Voltage output
◊ Auto-Ramping with user adjustable minimum & maximum output values
◊ User adjustable ramp step time, 1 to 20 seconds, in 1 second increments
◊ User adjustable Auto-power-off time from 1 to 20 minutes in 1 minute increments
◊ 3-position bail for pocket, hanging, or bench-top use
◊ Complete with :
  • 9V battery
  • 120 VAC plug-in power supply
  • Test leads with alligator clips
  • Carrying case
Outputs: Ranges: Current: 0.0 to 20.0 mA DC in 1 mA steps
    Voltage: 0.0 to 10.0 VDC in 1 V steps
  Accuracy at 25°C: Current:
± 0.05 mA DC
    Voltage: ± 0.05 VDC
  Load Impedance: Current:
300Ω maximum
    Voltage: 1000Ω minimum
  External mA Transmitter Source: Voltage: 12 V minimum to 30 V peak maximum
Ramping: Manual:
  anywhere in range
Values: user adjustable min. & max. values anywhere within range
    Step Time: user adjustable from 1 to 20 seconds, in 1 second increments
Display: Numerical:
  LCD, 00.0 to 99.9, 0.59” H (15 mm)
  “RAMP”, “OVER LOAD”, “mA”, “V”, “TIME”, and symbol for low battery
  Blue Backlight:   energized with momentary side switch
Environmental: Operating temperature:   32 to 122° F (0 to 50° C)
Power: 9V Battery:
  NEDA1604, JIS006P, or IEC6F22 (Duracell MN1604 or equivalent); up to 30 hours continuous use
  Low Battery:   indicator comes on below approximately 7 volts
  120 V AC:
  plug-in 9 VDC output supply for bench-top use
  Auto Power Off:   user adjustable delay time from 1 to 20 minutes after last key press can also be disabled
  5.5” H x 2.5” W x 1.4” D (140 H x 63.5 W x 35.6 D mm)
  Weight:   6 oz (170 g)
Ordering Information:
Compact Current & Voltage Calibrator
