LCD DIGITAL PANEL METERS
DK600

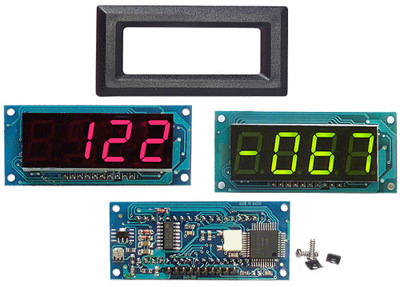

3 1/2 Digit LED Display for voltage inputs
| Features and Benefits: | ||
| ◊ Display hold function standard ◊ 3 1/2 digits with 0.56” RED or GREEN LED ◊ Window mount with optional bezel ◊ User-selectable decimal points ◊ Optional NEMA case (see DK610 for details) |
||
Specifications: |
||
|---|---|---|
| Display: | Digits: | 3 ½ digits (±1999 counts) |
| Type: | 7- segment LED (red or green) | |
| Digit Height: . |
.56 in (14.2 mm) | |
| Polarity Indication: | automatic “-” for neg input | |
| Decimal Points: |
3 position, user-selectable | |
| Overrange: | three lower order digits blank for inputs >1999 and < -1999 | |
| Signal Inputs: | Configuration: | bipolar & differential |
| Full-Scale Input: |
±200 mV, ±2 V, ±20 V | |
| Input Offset Adjustment: |
auto zero | |
| Input Impedance: | >100 MΩ (±200 mV),‑1 MΩ (other ranges) | |
| Common Mode Range: |
±1 VDC |
|
| Rejection: | >86 dB | |
| Protection: |
±350 VDC (±100 VDC for 200 mV range) | |
| Input Bias Current: | 1 pA typical, 100 pA max | |
| Control Inputs: | decimal point select, hold, span adjust trimpot | |
| Performance: | Sampling Rate: | 3.3 readings / seconds |
| Accuracy: |
± (0.1% + 2 counts) typ ±(0.2% + 2 counts) max | |
| Warmup, typical: | 10 min | |
| Temperature Coefficient:: | 100 ppm / °C | |
| Environment: | Operating Range: |
0 to 50 °C |
| Storage Range: | -10 to 60°C | |
| Relative Humidity: | 0 to 95% non-condensing | |
| Power Supply: | Supply Voltage: |
+5 VDC ±5% |
| Supply Current, typical: |
200 mA | |
| Physical: | Package Style: | window mount |
| Dimensions: |
2.52 x 1.10 x .73 | |
| Panel Cutout: | 2.05 x .81 | |
| Weight: |
0.7 oz (20 g) | |
| Connector: | J1C10 or C10-5 optional | |
| Connection: |
10 pin | |
| Bezel: | optional | |
| Ordering Information: | |
| PART NUMBER | INFO |
| DK601 |
GREEN LED LED, RANGE: 200mV, MOUNTING: OPTIONAL BEZEL: LED-B |
| DK602 |
GREEN LED LED, RANGE: 2V, MOUNTING: OPTIONAL BEZEL: LED-B |
| DK603 |
GREEN LED LED, RANGE: 20V, MOUNTING: OPTIONAL BEZEL: LED-B |
| DK604 |
RED LED LED, RANGE: 200mV, MOUNTING: OPTIONAL BEZEL: LED-B |
| DK605 |
RED LED LED, RANGE: 2V, MOUNTING: OPTIONAL BEZEL: LED-B |
| DK606 |
RED LED LED, RANGE: 20V, MOUNTING: OPTIONAL BEZEL: LED-B |
| DK610 |
NEMA enclosure |
| LED-B |
Optional Bezel Mounting Kit |
| J1C10 |
10 pin Connector / Wire Assembly, RED on pin #1, BLACK on pin #2 |
| PW2-5 |
DC Power Supply, 120 AC Input, 5 VDC @ 300mA Output |
