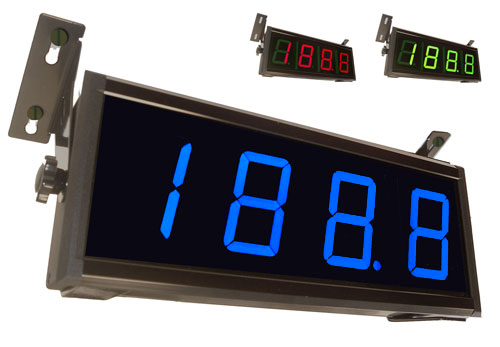

2.3" Digit Multifunction Meter
BDR-999 & BDR-924
LARGE 3 1/2 Digit LED Display
| Features and Benefits: | ||
| ◊ Replaces separate display and meter modules ◊ RED, GREEN or BLUE large multifunction 3 1/2 digit LED ◊ Bezel mount or 180º gimbal mounting in multiple planes - wall, bench, ceiling, panel, etc ◊ Resistant to RF and EMI ◊ Rugged metal case ◊ 2.3" numerals LED display visible from across the room ◊ Multifunction loop, set voltage, adjustable voltage inputs, all included ◊ Isolated AC/DC supply works in many control applications |
||
Specifications: |
||
|---|---|---|
| Display: | Digits: |
3 ½ digits (±1999 counts) |
| Type: | 2.3" (58.4mm) - 7 segment LED: RED, GREEN or BLUE digits | |
| Inputs: | Set Voltage Ranges: | ±200 mV, ± 2 V, ±20 VDC |
| Configuration: | bipolar differential | |
| Protection: | ±350 VDC, (±100 VDC on 200 mV range) | |
| Impedance: | >1 MΩ, (>10 MΩ on 200 mV range) | |
| Adj. Voltage Ranges: | 200 mV, 5 V, 10 VDC | |
| Offset Range: | -1999 to +1999 | |
| Gain Range: | 1 to 1000 | |
| 4-20mA Loop Ranges: | 4 to 20mA DC | |
| Configuration: |
bipolar differential | |
| Protection: |
±30mA | |
| Loop Impedance: | 300Ω nominal | |
| Performance: | Accuracy: |
±0.1% fs + 1 count) |
| Conversion Rate: |
3 per second | |
| Normal Mode Rejection: |
>30 dB @ 60 Hz | |
| Common Mode Rej.: |
>86 dB | |
| Zero Adjustment: |
automatic on set voltage ranges | |
| Warmup: |
10 minutes typical | |
| Temperature Coeff.: | ±100 ppm per °C typical | |
| Environment: | Operating Range: | -10 to 50 °C |
| Storage Range: | -40 to 75 °C | |
| Power Supply: | BDR-999: |
90 to 250 VAC @ 12 VA |
| BDR-924: | 10.5 to 30 VAC/DC @ 6 VA | |
| Mounting: |
180° gimbal mounting with 30° stops, or bezel mount | |
| Connection: | screw terminals | |
| Dimensions: | Meter without bracket | 10.6"W x 4.16"H x 1.97"D (add .21" with Bezel) |
| Ordering Information: | |
| PART NUMBER | INFO |
| BDR-924B |
2.3" Numeral Multifunction Meter, 10.5 - 30 VAC/DC Power, 3 1⁄2 Digit BLUE LED |
| BDR-924G |
2.3" Numeral Multifunction Meter, 10.5 - 30 VAC/DC Power, 3 1⁄2 Digit GREEN LED |
| BDR-924R |
2.3" Numeral Multifunction Meter, 10.5 - 30 VAC/DC Power, 3 1⁄2 Digit RED LED |
| BDR-999B |
2.3" Numeral Multifunction Meter, 90 - 250 VAC Power, 3 1⁄2 Digit BLUE LED |
| BDR-999G |
2.3" Numeral Multifunction Meter, 90 - 250 VAC Power, 3 1⁄2 Digit GREEN LED |
| BDR-999R |
2.3" Numeral Multifunction Meter, 90 - 250 VAC Power, 3 1⁄2 Digit RED LED |
| PW2-24 |
DC Power Supply, 120 AC Input, 24 VDC @ 100mA Output |
