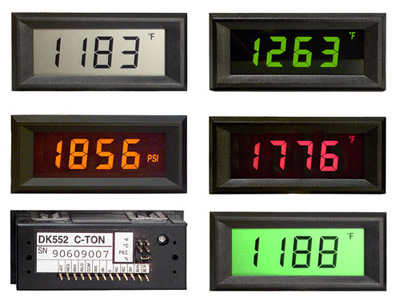

LCD DIGITAL PANEL METERS
EPIC Series - DK540-580
3 1/2 Digit - Snap-in Bezel Mount
| Features and Benefits: | ||
| ◊ Low-cost, high-performance replacement for many OEM DPMs ◊ Optional RED, GREEN or AMBER backlighting ◊ Snap-in bezel mount eliminates mounting hardware ◊ Resistant to RF and EMI ◊ 3 1/2 digits with high-contrast LCD ◊ User-selectable, displayed engineering units |
||
Specifications: |
||
|---|---|---|
| Display: | Digits: | 3 ½ digits (±1999 counts) |
| Type: | 0.45" (11.4 mm) 7 segment LCD | |
| Backlighting: |
Optional Red Negative (red numbers/black background) | |
| Optional Green Negative (green numbers/black background) | ||
| Optional Green Positive (black numbers/green background) | ||
| Polarity: |
automatic, “-” displayed | |
| Annunciators: |
°F, °C, PSI, %, user-selectable | |
| Decimal Points: |
3 position, user-selectable | Overrange: | three lower order digits blank for inputs >1999 and < -1999 |
| Inputs: | Ranges: |
±200.0 mV, ±2.000 V, ±20.00 VDC | Configuration: |
bipolar & differential |
| Protection: |
±350 VDC, (±100 VDC on 200 mV range) | Impedance: | 1000 MΩ on ± 200 mV; (1 MΩ on 2 V & 20 V range) | Bias Current: |
1 pA ( ± 200 mV) , 100 pA (other ranges) |
| Performance: | Accuracy: | ± (0.1% fs + 2 count) |
| Conversion Rate: |
3 per second | Normal Mode Rejection: |
>30 dB @ 60 Hz |
| Common Mode Range: |
±1 VDC max | Common Mode Rej.: |
>86 dB |
| Zero Adjustment: |
automatic | Warmup: |
10 minutes typical |
| Temperature Coefficient: |
±100 ppm per °C typical | Environment: | Operating Range: |
0 to 50 °C |
| Storage Range: |
-10 to 70 °C | Power Supply: | 5V powered: |
5 VDC at 3.5 mA max |
| Optional Backlight: |
5 VDC at 130mA typical | Mounting: | snap-in bezel mount |
| Connection: | 13 pins, 0.025" square | |
| Ordering Information: | |
| PART NUMBER | INFO |
| DK541 |
NO BACKLIGHT LCD, RANGE: 200mV, MOUNTING: SNAP IN |
| DK542 |
NO BACKLIGHT LCD, RANGE: 2V, MOUNTING: SNAP IN |
| DK543 |
NO BACKLIGHT LCD, RANGE: 20V, MOUNTING: SNAP IN |
| DK551 |
NEGATIVE AMBER LCD, RANGE: 200mV, MOUNTING: SNAP IN |
| DK552 |
NEGATIVE AMBER LCD, RANGE: 2V, MOUNTING: SNAP IN |
| DK553 |
NEGATIVE AMBER LCD, RANGE: 20V, MOUNTING: SNAP IN |
| DK561 |
NEGATIVE GREEN LCD, RANGE: 200mV, MOUNTING: SNAP IN |
| DK562 |
NEGATIVE GREEN LCD, RANGE: 2V, MOUNTING: SNAP IN |
| DK563 |
NEGATIVE GREEN LCD, RANGE: 20V, MOUNTING: SNAP IN |
| DK571 |
NEGATIVE RED LCD, RANGE: 200mV, MOUNTING: SNAP IN |
| DK572 |
NEGATIVE RED LCD, RANGE: 2V, MOUNTING: SNAP IN |
| DK573 |
NEGATIVE RED LCD, RANGE: 20V, MOUNTING: SNAP IN |
| DK581 |
POSITIVE GREEN LCD, RANGE: 200mV, MOUNTING: SNAP IN |
| DK582 |
POSITIVE GREEN LCD, RANGE: 2V, MOUNTING: SNAP IN |
| DK583 |
POSITIVE GREEN LCD, RANGE: 20V, MOUNTING: SNAP IN |
| J4C13 |
13 pin Connector / Wire Assembly, RED on pin #1, BLACK on pin #2 |
| PW2-5 |
DC Power Supply, 120 AC Input, 5 VDC @ 300mA Output |
| PW2-24 |
DC Power Supply, 120 AC Input, 24 VDC @ 100mA Output |
