LCD DIGITAL PANEL METERS

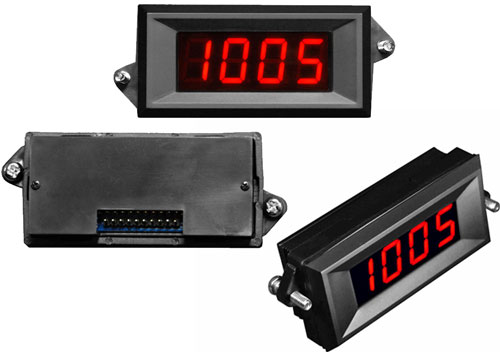

DK610
3 1/2 Digit LED Display for voltage inputs
Features and Benefits: | ||
◊ Display hold function standard ◊ 3 1/2 digits with 0.56” RED or GREEN LED ◊ 10 wire harness included ◊ Gasket and clamp provided for NEMA4, NEMA12 & IP66 applications ◊ User-selectable decimal points |
||
Specifications: |
||
---|---|---|
Display: | Digits: | 3 ½ digits (±1999 counts) |
Type: | 7- segment LED (red or green) | |
Digit Height: . |
.56 in (14.2 mm) | |
Polarity Indication: | automatic “-” for neg input | |
Decimal Points: |
3 position, user-selectable | Overrange: | three lower order digits blank for inputs >1999 and < -1999 |
Signal Inputs: | Configuration: | bipolar & differential | Full-Scale Input: |
±200 mV, ±2 V, ±20 V |
Input Offset Adjustment: |
auto zero | Input Impedance: | >100 MΩ (±200 mV),‑1 MΩ (other ranges) | Common Mode Range: |
±1 VDC | Rejection: | >86 dB |
Protection: |
>±350 VDC (±100 VDC for 200 mV range) | Input Bias Current: | 1 pA typical, 100 pA max | Control Inputs: | decimal point select, hold, span adjust trimpot |
Performance: | Sampling Rate: | 3.3 readings / seconds |
Accuracy: |
± (0.1% + 2 counts) typ ±(0.2% + 2 counts) max | Warmup, typical: | 10 min |
Temperature Coefficient: | 100 ppm / °C | Environment: | Operating Range: |
0 to 50 °C |
Storage Range: | -10 to 60°C | |
Relative Humidity: | 0 to 95% non-condensing | |
Power Supply: | Supply Voltage: |
+5 VDC ±5% | Supply Current, typical: |
200 mA |
Physical: | Package Style: |
NEMA bezel mount | Dimensions: |
3.09 x 1.5 x .66" |
Panel Cutout: | 2.83 x 1.26" | Weight: |
1.0 oz |
Connector: | J1C10 or C10-5 optional | Connection: |
10 pin |
Ordering Information: | |
PART NUMBER | INFO |
DK611 |
GREEN LED LED, RANGE: 200mV, |
DK612 |
GREEN LED LED, RANGE: 2V |
DK613 |
GREEN LED LED, RANGE: 20V |
DK614 |
RED LED LED, RANGE: 200mV |
DK615 |
RED LED LED, RANGE: 2V |
DK616 |
RED LED LED, RANGE: 20V |
J1C10 |
10 pin Connector / Wire Assembly, RED on pin #1, BLACK on pin #2 |
PW2-5 |
DC Power Supply, 120 AC Input, 5 VDC @ 300mA Output |
