LED DIGITAL PANEL METERS

DLA20-DCA SERIES

LED Display AC Ammeters with Builit-in Current Transformers

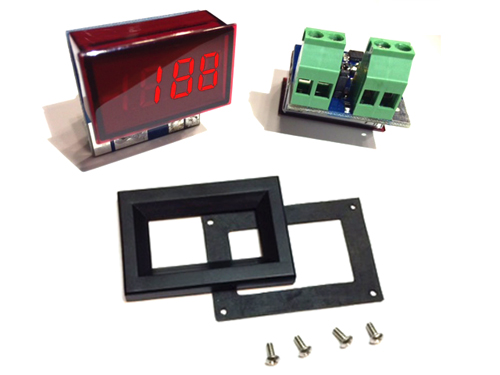

DLA20-DCA SERIES

Features and Benefits:
◊ Available in easy to read RED, BLUE or GREEN LED
◊ Built in shunts
The DLA20-DCA Series utilizes an on-board shunt to provide a digital read out of the monitored dc current.
Specifications:
Numeral Size: .37” (9.4 mm)
Overrange:
three lower order digits blank
Supply Voltage: 5-40 Vdc, 10-51 mA
Input Ranges: 199.9µA, 1.999mA, 19.99mA, 199.9mA, 1.999A, 19.99A
Accuracy: 0.2% FS
Sampling Range: 2.5 per second
Operating Temperature: -10 to 50 °C
Max Humidity: 95% (non-condensing)
Connection: 4 terminal



Ordering Information:
PART NUMBER METER COLOR METER INPUT
DLA20-DCA-R-1 RED 199.9µA
DLA20-DCA-B-1 BLUE 199.9µA
DLA20-DCA-G-1 GREEN 199.9µA
DLA20-DCA-R-2 RED 1.999mA
DLA20-DCA-B-2 BLUE 1.999mA
DLA20-DCA-G-2 GREEN 1.999mA
DLA20-DCA-R-3 RED 19.99mA
DLA20-DCA-B-3 BLUE 19.99mA
DLA20-DCA-G-3 GREEN 19.99mA
DLA20-DCA-R-4 RED 199.9mA
DLA20-DCA-B-4 BLUE 199.9mA
DLA20-DCA-G-4 GREEN 199.9mA
DLA20-DCA-R-5 RED 1.999A
DLA20-DCA-B-5 BLUE 1.999A
DLA20-DCA-G-5 GREEN 1.999A
DLA20-DCA-R-6 RED 19.99A
DLA20-DCA-B-6 BLUE 19.99A
DLA20-DCA-G-6 GREEN 19.99A

ACCESSORIES INCLUDED
DLA-BEZ-20-G Bezel Assembly



DATA SHEET
HOW TO BUY

DLA20-DCA
