LED DIGITAL PANEL METERS

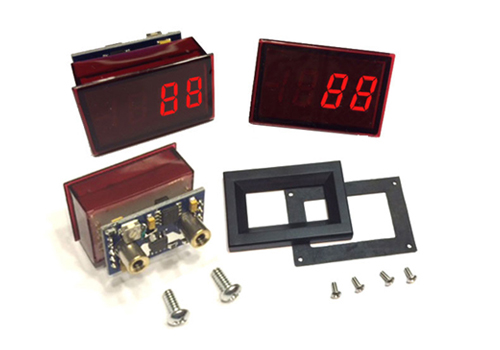

DLA20-LM SERIES

Self Powered, 3 Digit LED Display, AC Line Voltage

DLA20-LM SERIES

Features and Benefits:
◊ Screw terminals
◊ Available in easy to read RED, BLUE or GREEN LED
◊ Full-wave averaging
◊ Self Powered
Specifications:
Numeral Size: .37” (9.4 mm)
Overrange:
three lower order digits blank
Supply Voltage: 85-264 Vac, 30-50 mA
Input Ranges: 0-1.999A, 19.99A, 50.0A, 100.0A
Accuracy: ±.5% ± 6 counts
Sampling Range: 2.5 per second
Operating Temperature: -10 to 50 °C
Max Humidity: 95% (non-condensing)
Connection: Power - Screw Terminals, Input - thru-hole CT



Ordering Information:
PART NUMBER METER COLOR METER INPUT
DLA20-LM-R-1 RED 85-264Vrms
DLA20-LM-B-1 BLUE 85-264Vrms
DLA20-LM-G-1 GREEN 85-264Vrms

ACCESSORIES INCLUDED
DLA-BEZ-20-G Bezel Assembly
