LED DIGITAL PANEL METERS

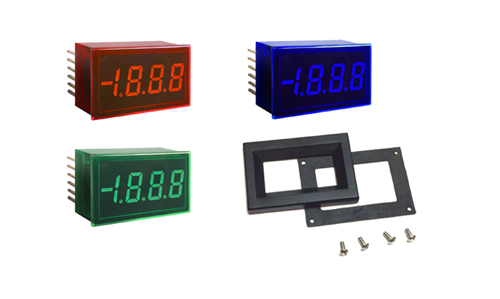

DLA-200LED SERIES
3 1/2 Digit LED Display
| Features and Benefits: | ||
|
◊ 0.37”, 3½ digit high intensity LED display ◊ Available in RED, BLUE or GREEN ◊ User-selectable decimal points ◊ Polycarbonate case ◊ Optional bezel mount |
||
Specifications: |
||
|---|---|---|
| Numeral Size: | .37” (9.4 mm) | |
| Overrange: |
three lower order digits blank for inputs >1999 & < -1999 | |
| Polarity Indication: | automatic (-) for negative | |
| Supply Voltage: | +5 VDC @40mA | |
| Input Ranges: | ±200 mVdc, ± 2Vdc, ±20Vdc | |
| Input Impedance: | 1000 MΩ (200 mV), 1 MΩ (other ranges) | Common Mode Range: | ± 1 Vdc |
| Accuracy: | ±1% F.S. ± 2 counts | Sampling Range: | 3 per second |
| Operating Temperature: | 0 to 50 °C | Max Humidity: | 95% (non-condensing) | Connection: | 12 pin |
Ordering Information: |
||
|---|---|---|
| PART NUMBER | METER COLOR | METER INPUT |
| DLA-200B | BLUE | 200mV |
| DLA-201B | BLUE | 2V |
| DLA-202B | BLUE | 20V |
| DLA-200G | GREEN | 200mV |
| DLA-201G | GREEN | 2V |
| DLA-202G | GREEN | 20V |
| DLA-200R | RED | 200mV |
| DLA-201R | RED | 2V |
| DLA-202R | RED | 20V |
| ACCESSORIES | ||
| DLA-BEZ-20-G | Bezel Assembly | |
| PW2-5 | Regulated 120V AC to 5V DC Power Supply | |
| CVC | Calibrator | |
