DIP LED DIGITAL PANEL METERS

DLA-300/400 LED SERIES

3 1/2 Digit LED Display

DLA-300/400

Features and Benefits:

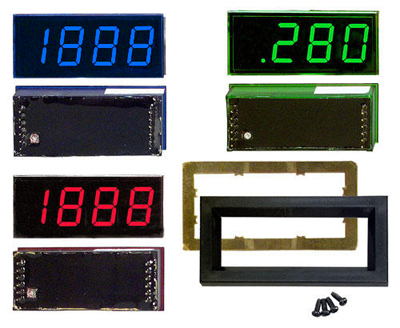

◊ 0.56", 3 1/2 digit high intensity display
◊ Available in RED, BLUE or GREEN
◊ User-selectable decimal
◊ Polycarbonate case
◊ Optional bezel mount
Specifications:
Supply voltage: +5 VDC @ 40 mA
Input Ranges:
±200 mV, ± 2 V, ±20 V
Numeral Size: .56” (14.27 mm)
Operating Temperature: 0-50°C
Max Humidity: 95% (non-condensing)
Input Impedance: 1000 MΩ (200 mV)
Polarity Indication: automatic (-) for negative input
Overrange: three lower order digits blank for inputs >1999 & < -1999
Accuracy: ±1% F.S. ± 2 counts
Common Mode Range: ± 1 VDC
Sampling Rate: 3 per second
Connections: 12 pin



Ordering Information:
PART NUMBER METER COLOR METER INPUT
DLA-300HRL HI INTENS. RED 200mV, POWER: 5V
DLA-301HRL HI INTENS. RED 2V, POWER: 5V
DLA-302HRL HI INTENS. RED 20V, POWER: 5V
DLA-300GL GREEN 200mV, POWER: 5V
DLA-301GL GREEN 2V, POWER: 5V
DLA-302GL GREEN 20V, POWER: 5V
DLA-300BL BLUE 200mV, POWER: 5V
DLA-301BL BLUE 2V, POWER: 5V
DLA-302BL BLUE 20V, POWER: 5V
DLA-400HRL HI INTENS. RED, W/HOLDFUNCTION 200mV,  POWER: 5V
DLA-401HRL HI INTENS. RED, W/HOLDFUNCTION 2V,  POWER: 5V
DLA-402HRL HI INTENS. RED, W/HOLDFUNCTION 20V, POWER: 5V

ACCESSORIES
DLA-BEZ Bezel Assembly
PW2-5 Regulated 120V AC to 5V DC Power Supply
CVC Calibrator


DATA SHEET
WIRING DIAGRAM
