LCD DIGITAL PANEL METERS

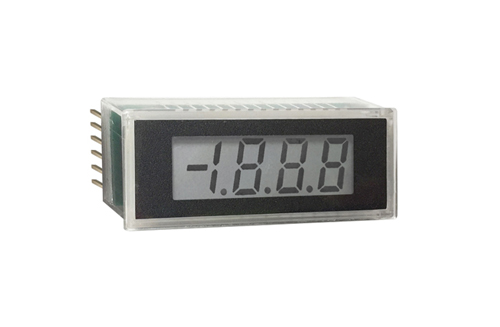

DLA-300LCD SERIES

3 1/2 Digit LCD

DLA-300LCD SERIES - 3 Digit LCD

Features and Benefits:
◊ 0.45”, 3 digit high contrast LCD
◊ Optional positive green backlight
◊ User-selectable decimal points
◊ Polycarbonate case
◊ Optional bezel mount
Specifications:
Numeral Size: .45” (11.43 mm)
Overrange:
three lower order digits blank for inputs >1999 & < -1999
Polarity Indication: automatic (-) for negative
Supply Voltage: +5 VDC @2mA (10mA with backlight option)
Input Ranges: ±200 mVdc, ± 2Vdc, ±20Vdc, ±200Vdc
Input Impedance: 1000 MΩ (200 mV), 1 MΩ (other ranges)
Common Mode Range: ± 1 Vdc
Accuracy: ±1% F.S. ± 2 counts
Sampling Range: 3 per second
Operating Temperature: 0 to 50 °C
Max Humidity: 95% (non-condensing)
Connection: 12 pin



Ordering Information:
PART NUMBER METER COLOR METER INPUT
DLA-300LCD NONE 200mV
DLA-300LCD-L 5V POSITIVE GREEN 200mV
DLA-301LCD NONE 2V
DLA-301LCD-L 5V POSITIVE GREEN 2V
DLA-302LCD NONE 20V
DLA-302LCD-L 5V POSITIVE GREEN 20V
DLA-303LCD NONE 200V
DLA-303LCD-L 5V POSITIVE GREEN 200V

ACCESSORIES
DLA-BEZ Bezel Assembly
PW2-5 Regulated 120V AC to 5V DC Power Supply
CVC Calibrator








DATA SHEET
