LED DIGITAL PANEL METERS

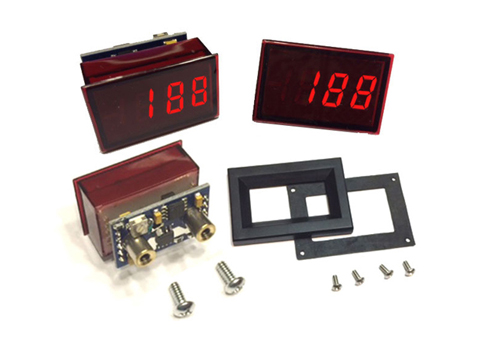

DLA20-DCM SERIES

Self Powered, Positive Input LED Display, DC Voltage

DLA20-DCM SERIES

Features and Benefits:
◊ Screw terminals
◊ Available in easy to read RED, BLUE or GREEN LED
◊ Self Powered
Specifications:
Numeral Size: .37” (9.4 mm)
Overrange:
three lower order digits blank
Supply Voltage: self powered
Input Ranges: see ordering info
Accuracy: ±1% F.S.(typ) 2% (max)
Sampling Range: 2.5 per second
Operating Temperature: -10 to 50 °C
Max Humidity: 95% (non-condensing)
Connection: 2 screw terminals



Ordering Information:
PART NUMBER METER COLOR METER INPUT
DLA20-DCM-R-0 RED +4.50 to +19.99V
DLA20-DCM-B-0 BLUE +4.50 to +19.99V
DLA20-DCM-G-0 GREEN +4.50 to +19.99V
DLA20-DCM-R-1 RED +8.0 to +50.0V
DLA20-DCM-B-1 BLUE +8.0 to +50.0V
DLA20-DCM-G-1 GREEN +8.0 to +50.0V
DLA20-DCM-R-2 RED +30 to +264V
DLA20-DCM-B-2 BLUE +30 to +264V
DLA20-DCM-G-2 GREEN +30 to +264V

ACCESSORIES INCLUDED
DLA-BEZ-20-G Bezel Assembly
