LED DIGITAL PANEL METERS

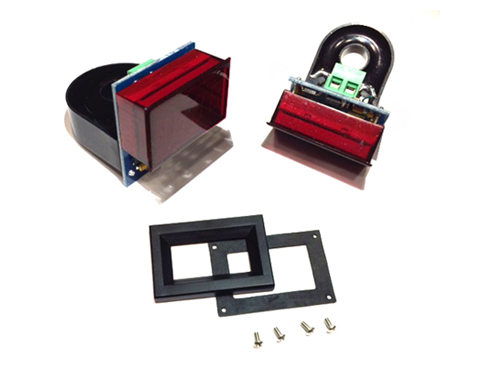

DLA20-ACA SERIES

LED Display AC Ammeters with Builit-in Current Transformers

DLA20-ACA SERIES

Features and Benefits:
◊ Available in easy to read RED, BLUE or GREEN LED
◊ Powered by 85-264 Vac
The DLA20-ACA Series utilizes an onboard CT to provide a digital read out of the monitored current.
Specifications:
Numeral Size: .37” (9.4 mm)
Overrange:
three lower order digits blank
Supply Voltage: 85-264 Vac, 30-50 mA
Input Ranges: 0-1.999A, 19.99A, 50.0A, 100.0A
Accuracy: ±.5% F.S. ± 6 counts
Sampling Range: 2.5 per second
Operating Temperature: -10 to 50 °C
Max Humidity: 95% (non-condensing)
Connection: power - screw terminals, input - thru-hole CT



Ordering Information:
PART NUMBER METER COLOR METER INPUT
DLA20-ACA-R-1 RED 1.999A
DLA20-ACA-B-1 BLUE 1.999A
DLA20-ACA-G-1 GREEN 1.999A
DLA20-ACA-R-2 RED 19.99A
DLA20-ACA-B-2 BLUE 19.99A
DLA20-ACA-G-2 GREEN 19.99A
DLA20-ACA-R-3 RED 50.0A
DLA20-ACA-B-3 BLUE 50.0A
DLA20-ACA-G-3 GREEN 50.0A
DLA20-ACA-R-4 RED 100.0A
DLA20-ACA-B-4 BLUE 100.0A
DLA20-ACA-G-4 GREEN 100.0A

ACCESSORIES INCLUDED
DLA-BEZ-20-G Bezel Assembly



DATA SHEET
HOW TO BUY

DLA20-ACA
