STURDY DESIGN REPLACES
OLD COPPER
"ONE SIZE ONLY" CLIPS
Features and Benefits:
◊ Unit can hold three different sizes of capillary tubing ⅛”, ¼” and ⅜”
◊ Slots for tie anchors
◊ Inside tapered ridges allow tubing to be snapped in place
◊ Mounting in either horizontal or vertical planes
◊ Corner slot accepts 1/4" sensors

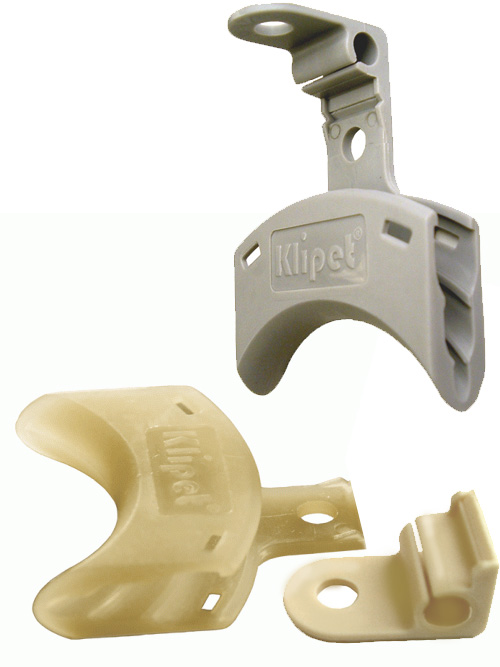

◊ Clips can be separated into two parts
- Use one as a capillary mounting clip
- The other part can be used as a sensor mounting bracket
◊ Plenum rated, class 94V-2 nylon
◊ Available in natural, beige & grey
SPECIFICATIONS:
Ordering Information:
PART NUMBER
COLOR
CC1-N
NATURAL
CC1-B
BEIGE
CC1-G
GREY
Custom colors and logos available (10,000 piece minimum)
To order, click link below to enter Digi-Key's website, enter the DK part number into the "C-Ton Industries Part Search".
If you are unsure of what you want, there is also a product training module or use Digi-Key's Live Online Chat.
Download
Data Sheet PDF
